How to maintain the use of the powder coating transfer pumps powder spray injectors

To achieve higher powder yield and better powder output efficiency using your electrostatic powder spray gun, the powder pump is a very important component.

Powder pump is used for conveying powder materials. Its core function is to achieve automatic and closed conveying of dry and lightweight powders through airflow (positive or negative pressure). This conveying method can effectively replace manual handling, improve production efficiency, and reduce material waste and environmental pollution.

Its function:
1.Closed conveying and environmental protection: The operates in a closed pipeline to avoid powder leakage and dust flying, especially suitable for toxic, harmful or easily polluting materials, ensuring the safety of operators and meeting the requirements of clean production.

2.Suitable for multiple types of powders: capable of handling powders with low bulk density, dry and easy to flow
3.Energy saving and low maintenance design: reduce energy consumption; The structure is simple, with minimal wear and tear during operation, and there is basically no need for frequent maintenance, reducing downtime. ‌

4.Flexible installation and operation: small footprint, easy installation

The powder pump is a key component in powder spraying equipment, and its maintenance is crucial for spraying quality and equipment lifespan. The following are maintenance points and steps:

1. Daily inspection: Before starting up powder coating equipment  each day, check whether the powder pump is running normally, whether there is any abnormal noise, and confirm that there is no air leakage at the air circuit connection and all are good for working.

2. Cleaning floating powder: Regularly using a high pressure air spray gun to blow the floating powder inside and outside the powder pump body with compressed air. For powder that is difficult to remove inside the casing, soak it in alcohol to soften it, and then clean it with a brush or soft cloth.

3.Avoid damage: rough tools (such as metal wires or rough wooden sticks) should be avoided during cleaning to prevent scratching the inner surface of the sleeve; It is recommended to use a smooth wooden stick or rubber stick to gently remove powder and dirt.

4.Wear inspection: Regularly check the wear of the powder pump and powder injectors. If severe wear is found, it should be replaced in a timely manner to ensure stable powder spraying parameters.

5.Regular deep maintenance: Disassemble the Venturi sleeve ,nozzles and other components weekly or according to production frequency, thoroughly clean the accumulated powder, and check the components for neutrality and airtightness.

6.Maintenance should be carried out in conjunction with equipment operation records, and any abnormal situations should be promptly shut down for maintenance.

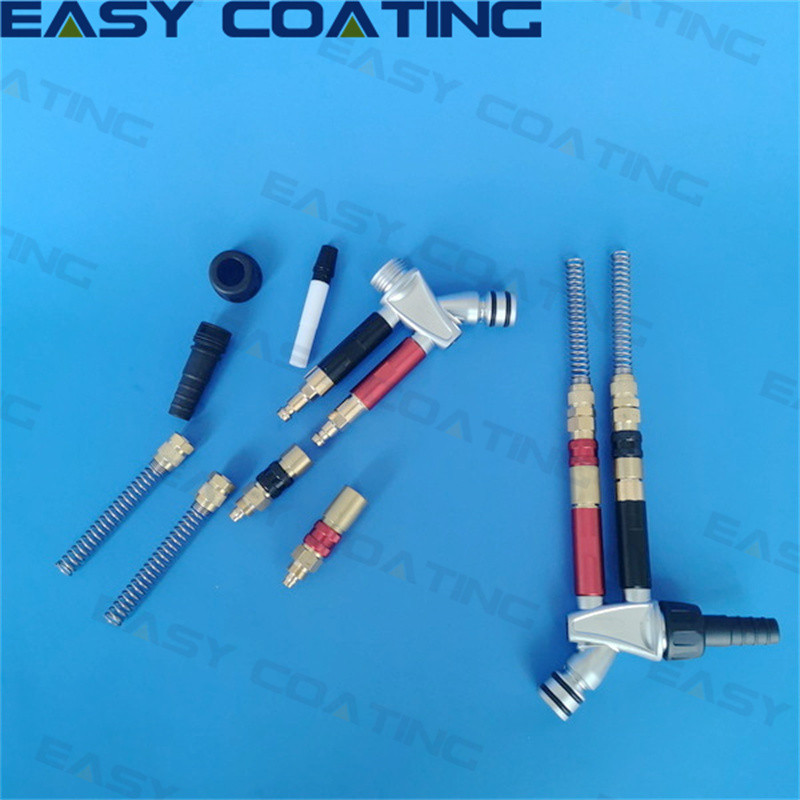

We sell many kinds of high quality of powder coating pumps and powder transfer injectors for some brands.

Such as gema optiflow IG02 replacement, optiflow IG03 replacement,optiflow IG06 replacement,optiflow IG06 replacement,optiflow IG07 replacement.

Wagner HiCoat-ED Pump - P  replacement, Powder injector PI-P1 replacemnt,Powder injector PI-F1 replacement.

Nordson Tribomatic II Powder Pump replacement,PUMP replacement of assembly, inline Encore replacement Pump assembly Tribo Encore Gen II pk,nordson Pump replacement of powder feed corona generation II ,nordson replacement of diffuser tribomatic II single,nordson replacement of standard 100 plus pumps, replacement of pump powder 6mm  stand flow

And other series of powder transfer pumps and powder coating spraying injectors for manual electrostatic powder coating machine and automatic electrostatic powder spraying equipment or other powder painting lines and systems.
